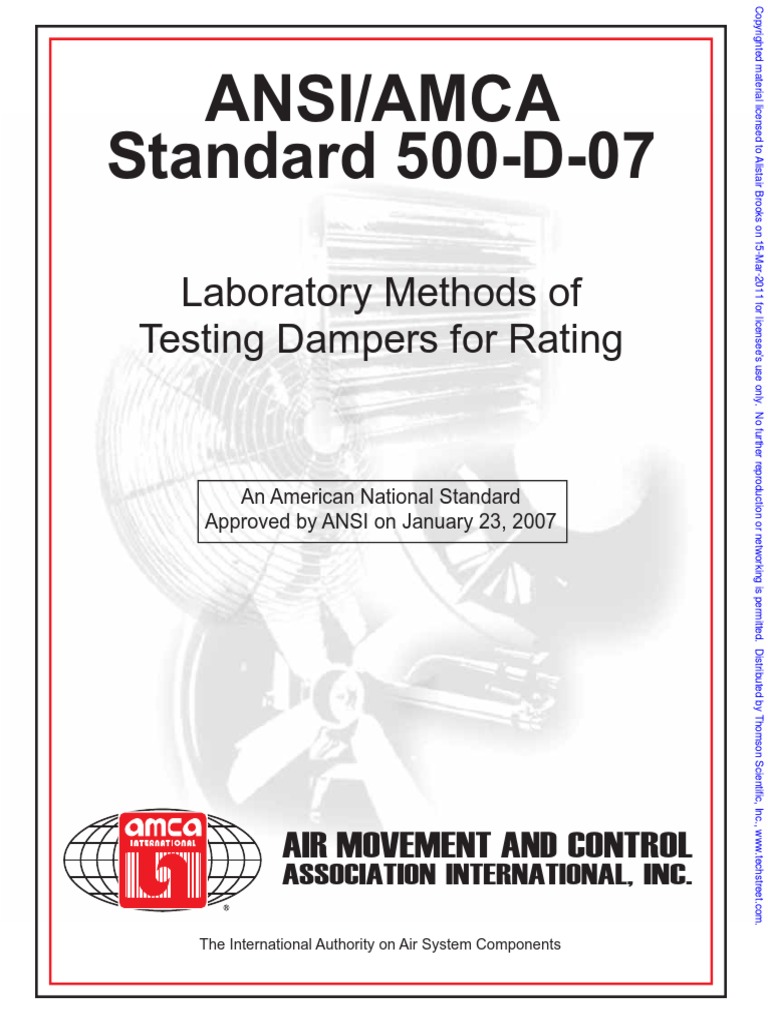

The AMCA laboratory has the capability to test fans, louvers, dampers, air curtains ANSI/AMCA D Laboratory Methods of Testing Dampers for Rating . Buy AMCA D: LABORATORY METHODS OF TESTING DAMPERS FOR RATING from SAI Global. ANSI/AMCA D Laboratory Methods of Testing Dampers for Rating The purpose of this standard is to establish uniform laboratory test methods for.
| Author: | Mem Vudogis |
| Country: | Bermuda |
| Language: | English (Spanish) |
| Genre: | Software |
| Published (Last): | 2 December 2009 |
| Pages: | 358 |
| PDF File Size: | 19.84 Mb |
| ePub File Size: | 1.43 Mb |
| ISBN: | 952-5-58206-878-4 |
| Downloads: | 55947 |
| Price: | Free* [*Free Regsitration Required] |
| Uploader: | Shazragore |
Hg barometric pressure has these properties, approximately.

Please first log in with a verified email before subscribing to alerts. The Pitot-static tube shall be of sufficient size and strength to withstand the pressure forces exerted upon it. Upstream pressure taps shall be located as shown in the figure for the appropriate setup.
The nozzle surface in the direction of flow from the nozzle inlet towards the nozzle exit shall fair smoothly so that a straight-edge may be rocked over the surface without clicking. The description of the test setup including specific dimensions shall be recorded. Torque readings at 1? When using a chamber for airflow leakage testing, criteria for velocity profile downstream of the nozzles, and area ratio criteria may be ignored.
One reading of chamber static pressure Ps7 shall be recorded. Data shall be recorded to establish accurate airflow measurement see Section 6. Dry-bulb temperature is the air temperature measured by a dry temperature sensor. To determine the differences in mechanical forces within the damper while opening vs.
Turning vanes may be used to improve the velocity profile through an elbow. Ambient dry-bulb temperature tdoambient wet-bulb temperature twoand ambient barometric pressure pb shall be recorded. The ducts, chambers and other equipment utilized should be designed to withstand the pressure and other forces to be encountered.
AMCA seeking volunteers to serve on AMCA D Review Committee.
Manometer readings shall be corrected for any difference in specific weight of gauge fluid from standard, any difference in gas column balancing effect from standard, or any change in length of the graduated scale due to temperature.
The temperature at td1 shall be recorded at a,ca second intervals from the time heat is introduced into the system until completion of the test.

The airflow rate Q3 at the Pitot traverse plane shall be obtained from the velocity V3 and the area A3 using: The damper shall close utilizing the appropriate weights, springs, actuators or other closing dampers normally supplied with the damper, applying the closing ajca or force. A curve for each variable shall be obtained by drawing a continuous curve using the test points for reference. The damper and system leakage through the leakage chamber nozzle plate shall be calculated using Section 9.
The test system must be designed in such a manner that when the test damper is open the original air flow rate will be established.
AMCA seeking volunteers to serve on AMCA 500-D Review Committee.
The density of distilled water at saturation pressure shall be taken as If the calculated leakage is greater than 4. The measurements must be sufficient to determine all appropriate performance variables as defined in Section 5.
A test is a complete set of measurements or determinationsone set for each setting of airflow with the damper in the open position and pressure drop across the damper when in the closed position.
Pressure measuring systems consisting of indicators and sensors other than manometers and Pitot-static tubes, or static pressure taps may be used if the combined uncertainty of the system including any transducers does not exceed the combined uncertainty for an appropriate combination of manometers and Pitot-static tubes, or static pressure taps.
The area A6 is measured at the plane of the throat taps or the nozzle exit for nozzles without throat taps. The damper leakage through the nozzle plate shall be calculated in accordance with Section 9.
Air control
Averaging can sometimes be accomplished mentally, particularly if the fluctuations are small and regular. The damper leakage for these two tests is given by Equations 9. A correction shall be made to adjust the pressure drop measured at test conditions to the pressure drop which would be measured at the same airflow rate with standard air density [1.
After three closure cycles the damper shall be reversed and retested with airflow through the damper in the reverse direction. See damper cross-sections Figure 1. Airflow amcca is the amount of air passing through wmca damper when it is in the closed position and at a specific pressure differential. The damper amac be then allowed to close with the appropriate weights, springs, actuators or other closing dampers normally supplied with the damper applying the closing torque or force.
The downstream elbows should be as far as possible from the damper being tested. Names, model amcaa, serial numbers, scale ranges, and calibration information should be recorded. Elevated temperature dynamic closure is the ability of a damper to properly travel from the full open to the full closed position while exposed to specific airflow conditions at a specified elevated air temperature. Plenum size shall be larger than the test damper by a minimum of mm 12 in.
